Band Locking Guide

HOW DO I LOCK MY INTERNET DEVICE TO ONE LTE CHANNEL?

Dynami Wireless Internet Device allows for you to lock onto one LTE channel to avoid automatic channel changes in low signal situations or to help with improving speeds if one channel is faster than the other.

 To get started, make sure your Internet Device is connected, powered up and is displaying a green WI-FI signal in the front panel of the device  and / or the green Ethernet light

 Follow the steps listed below to change your LTE Channel:

 Step 1. Make sure your device is connected to the Dynami Wireless Internet device.

Step 2. Open an up an Internet browser such as Google Chrome.

Step 3. Type in the following information in the URL section of the web browser, 192.168.100.1 and then hit enter. (See Example):

Screen Shot 2019-04-22 at 1.45.08 PM.png

Step 4. Enter the password to access the modem, The default password is the word "admin".

Step 5. You will now be at the Dynami Wireless Internet device home page, now look for a section that says CONNECTION STATUS, in the box you will be able shut off any active LTE connections, this is required so you can make changes to the device. (See Example):

Screen Shot 2019-04-22 at 1.50.09 PM.png

Step 6. Now continue on the device home page and look for a section that says NETWORK SETTINGS, in that section you will be able to find the link to update your settings, click on the NETWORK settings link to continue. (See Example):

Screen Shot 2019-04-22 at 1.45.08 PM.png

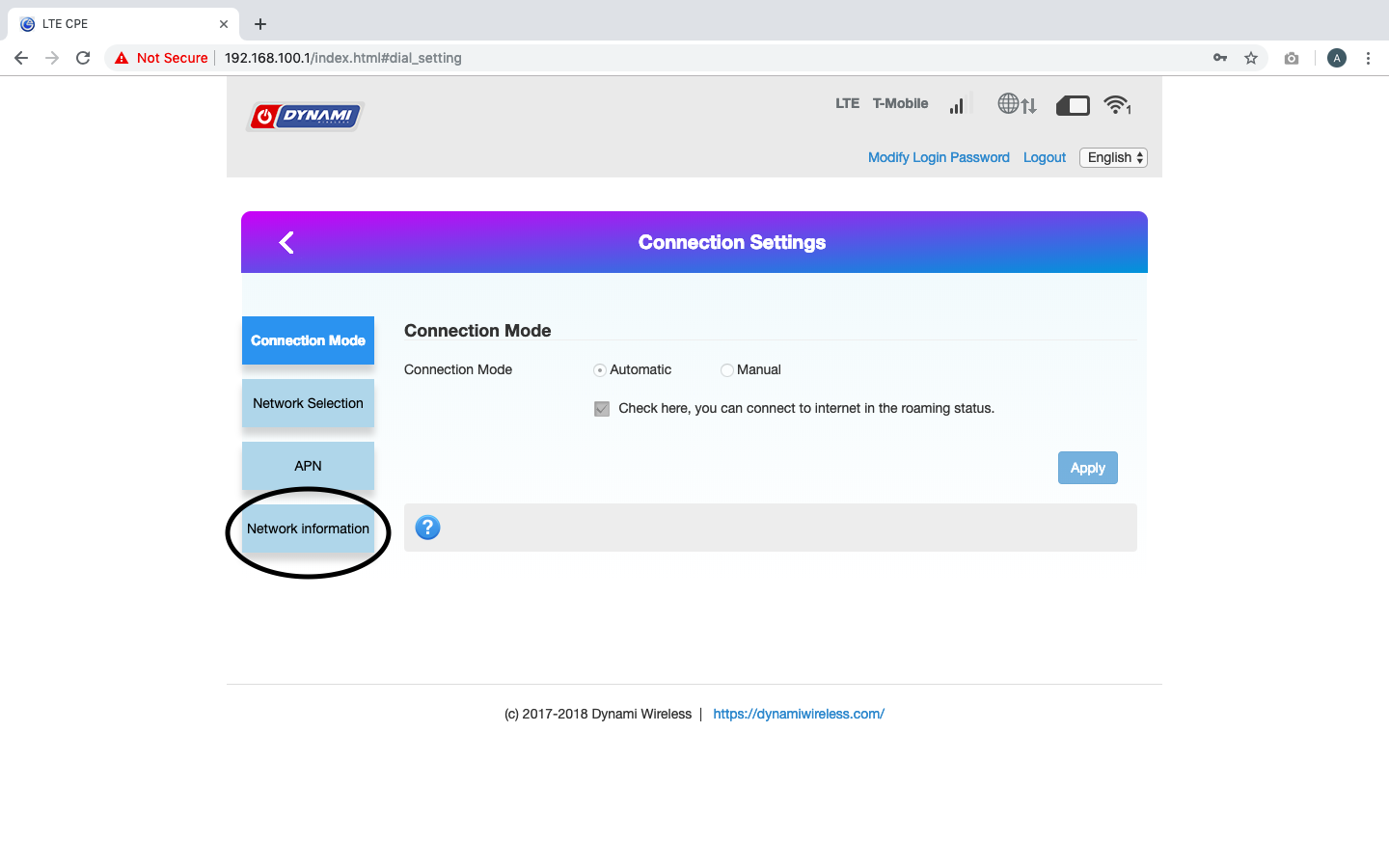

Step 7. After you click on the NETWORK settings link above, you will now have access to the connection settings menu, now click on the NETWORK INFORMATION button. (See Example):

Screen Shot 2019-04-22 at 1.56.47 PM.png

Step 8. Now you are at set frequency band menu. Now select the channel you desire for your Internet device. After you set the desired channel make sure to hit apply, You will get a success message, then hit apply for a second time and power cycle (restart) the Internet device.

Screen Shot 2019-04-22 at 2.04.46 PM.png

Final Step. Once you have rebooted your Internet device, you should see a 4G icon on the front display of your modem, this means your device is connected to the LTE tower. You can proceed to check your signal strength and LTE Band Channel information to ensure that your are now locked to the desired channel.
